Deploying JupyterHub on OKD - `unable to validate against any security context constraint`

JupyterHub
1

tl;dr:

I would like to know how to fix this error:

Error creating: pods "hook-image-awaiter-" is forbidden: unable to validate against any security context constraint: [
 provider "anyuid": Forbidden: not usable by user or serviceaccount,
 spec.containers[0].securityContext.runAsUser: Invalid value: 65534: must be in the ranges: [1000690000, 1000699999],

detailed version:

I would like to run a JupyterHub using OKD.
I do not grasp yet how (and what) to configure. I’ll post you what I did and what errors I received.

oc login --token=<my OKD API token> --server=<server-address:port>

Logged into "<server-address:port>" as "kube:admin" using the token provided.
You have access to 73 projects, the list has been suppressed. You can list all projects with 'oc projects'

oc new-project turing

Now using project "turing" on server "<server-address:port>".
You can add applications to this project with the 'new-app' command. For example, try:
oc new-app rails-postgresql-example
to build a new example application in Ruby. Or use kubectl to deploy a simple Kubernetes application:
kubectl create deployment hello-node --image=k8s.gcr.io/e2e-test-images/agnhost:2.33 -- /agnhost serve- hostname

Now, following the Zero to JupyterHub guide I create an empty config.yaml

Following the next step I run:

helm repo add jupyterhub-discourse https://jupyterhub.github.io/helm-chart/

"jupyterhub-discourse" has been added to your repositories

helm repo update

Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "jupyterhub-discourse" chart repository
Update Complete. ⎈Happy Helming!⎈

My helm upgrade settings explained:

  • “version1”: helm release number as in the docu
  • “jupyterhub/jupyterhub”: the jupyterhub image
  • “turing”: the namespace I created earlier
  • “1.2.0”: the current JupyterHub helm chart release
  • “config.yaml”: the empty file I created
helm upgrade --install version1 jupyterhub/jupyterhub --namespace turing --create-namespace --version=1.2.0 --values config.yaml --debug

history.go:56: [debug] getting history for release version1
Release "version1" does not exist. Installing it now.
install.go:178: [debug] Original chart version: "1.2.0"
install.go:195: [debug] CHART PATH: C:\Users\MUUQ04~1\AppData\Local\Temp\helm\repository\jupyterhub-1.2.0.tgz

client.go:128: [debug] creating 1 resource(s)
client.go:299: [debug] Starting delete for "hook-image-puller" DaemonSet
client.go:128: [debug] creating 1 resource(s)
client.go:299: [debug] Starting delete for "hook-image-awaiter" ServiceAccount
client.go:128: [debug] creating 1 resource(s)
client.go:299: [debug] Starting delete for "hook-image-awaiter" Role
client.go:128: [debug] creating 1 resource(s)
client.go:299: [debug] Starting delete for "hook-image-awaiter" RoleBinding
client.go:128: [debug] creating 1 resource(s)
client.go:299: [debug] Starting delete for "hook-image-awaiter" Job
client.go:128: [debug] creating 1 resource(s)
client.go:529: [debug] Watching for changes to Job hook-image-awaiter with timeout of 5m0s
client.go:557: [debug] Add/Modify event for hook-image-awaiter: ADDED
client.go:596: [debug] hook-image-awaiter: Jobs active: 0, jobs failed: 0, jobs succeeded: 0
Error: failed pre-install: timed out waiting for the condition
helm.go:84: [debug] failed pre-install: timed out waiting for the condition

This is the same error as the error in this topic.
But when I run:

kubectl get events --sort-by='{.lastTimestamp}'

I get the following securityContext error:

LAST SEEN   TYPE      REASON         OBJECT                        MESSAGE

6m1s        Warning   FailedCreate   daemonset/hook-image-puller
Error creating: pods "hook-image-puller-" is forbidden: unable to validate against any security context constraint: [
 provider "anyuid": Forbidden: not usable by user or serviceaccount,
 spec.initContainers[0].securityContext.runAsUser: Invalid value: 65534: must be in the ranges: [1000690000, 1000699999],
 spec.initContainers[1].securityContext.runAsUser: Invalid value: 65534: must be in the ranges: [1000690000, 1000699999],
 spec.containers[0].securityContext.runAsUser: Invalid value: 65534: must be in the ranges: [1000690000, 1000699999],
 provider "nonroot": Forbidden: not usable by user or serviceaccount,
 provider "hostmount-anyuid": Forbidden: not usable by user or serviceaccount,
 provider "machine-api-termination-handler": Forbidden: not usable by user or serviceaccount,
 provider "hostnetwork": Forbidden: not usable by user or serviceaccount,
 provider "hostaccess": Forbidden: not usable by user or serviceaccount,
 provider "node-exporter": Forbidden: not usable by user or serviceaccount,
 provider "privileged": Forbidden: not usable by user or serviceaccount]

18s         Warning   FailedCreate   job/hook-image-awaiter
Error creating: pods "hook-image-awaiter-" is forbidden: unable to validate against any security context constraint: [
 provider "anyuid": Forbidden: not usable by user or serviceaccount,
 spec.containers[0].securityContext.runAsUser: Invalid value: 65534: must be in the ranges: [1000690000, 1000699999],
 provider "nonroot": Forbidden: not usable by user or serviceaccount,
 provider "hostmount-anyuid": Forbidden: not usable by user or serviceaccount,
 provider "machine-api-termination-handler": Forbidden: not usable by user or serviceaccount,
 provider "hostnetwork": Forbidden: not usable by user or serviceaccount,
 provider "hostaccess": Forbidden: not usable by user or serviceaccount,
 provider "node-exporter": Forbidden: not usable by user or serviceaccount,
 provider "privileged": Forbidden: not usable by user or serviceaccount]

According to the OpenShift Docu my user is “nfsnobody”.

How and where can I configure a correct user?

What did not work:

1. Setting uid + fsGid the same way as the old discussion:

Trying to run it like in the other discussion leads to:

PS C:\Users\<user>\Documents\CDI\jupyter> helm upgrade --install version2 jupyterhub/jupyterhub --namespace turing --create-namespace --version=1.2.0 --values config.yaml
Error: UPGRADE FAILED: execution error at (jupyterhub/templates/NOTES.txt:154:4):

#################################################################################
######   BREAKING: The config values passed contained no longer accepted    #####
######             options. See the messages below for more details.        #####
######                                                                      #####
######             To verify your updated config is accepted, you can use   #####
######             the `helm template` command.                             #####
#################################################################################

RENAMED: hub.uid must as of 1.0.0 be configured using hub.containerSecurityContext.runAsUser

config.yaml:

proxy:
  secretToken: “sha256~incrediblesecretsecret”
hub:
  uid: 0
  fsGid: 0

trying to fix that error (1.0.0):

config.yaml changed to:

proxy:
  secretToken: “sha256~incrediblesecretsecret”
hub:
  containerSecurityContext:
    runAsUser: 1000

running it again returns:

PS C:\Users\<user>\Documents\CDI\jupyter> helm upgrade --install version2 jupyterhub/jupyterhub --namespace turing --create-namespace --version=1.2.0 --values config.yaml --debug
history.go:56: [debug] getting history for release version2
upgrade.go:142: [debug] preparing upgrade for version2
upgrade.go:150: [debug] performing update for version2
upgrade.go:322: [debug] creating upgraded release for version2
client.go:299: [debug] Starting delete for "hook-image-puller" DaemonSet
client.go:328: [debug] daemonsets.apps "hook-image-puller" not found
client.go:128: [debug] creating 1 resource(s)
client.go:299: [debug] Starting delete for "hook-image-awaiter" ServiceAccount
client.go:128: [debug] creating 1 resource(s)
client.go:299: [debug] Starting delete for "hook-image-awaiter" Role
client.go:128: [debug] creating 1 resource(s)
client.go:299: [debug] Starting delete for "hook-image-awaiter" RoleBinding
client.go:128: [debug] creating 1 resource(s)
client.go:299: [debug] Starting delete for "hook-image-awaiter" Job
client.go:328: [debug] jobs.batch "hook-image-awaiter" not found
client.go:128: [debug] creating 1 resource(s)
client.go:529: [debug] Watching for changes to Job hook-image-awaiter with timeout of 5m0s
client.go:557: [debug] Add/Modify event for hook-image-awaiter: ADDED
client.go:596: [debug] hook-image-awaiter: Jobs active: 0, jobs failed: 0, jobs succeeded: 0
upgrade.go:431: [debug] warning: Upgrade "version2" failed: pre-upgrade hooks failed: timed out waiting for the condition
Error: UPGRADE FAILED: pre-upgrade hooks failed: timed out waiting for the condition
helm.go:84: [debug] pre-upgrade hooks failed: timed out waiting for the condition
UPGRADE FAILED
main.newUpgradeCmd.func2
        helm.sh/helm/v3/cmd/helm/upgrade.go:199
github.com/spf13/cobra.(*Command).execute
        github.com/spf13/cobra@v1.3.0/command.go:856
github.com/spf13/cobra.(*Command).ExecuteC
        github.com/spf13/cobra@v1.3.0/command.go:974
github.com/spf13/cobra.(*Command).Execute
        github.com/spf13/cobra@v1.3.0/command.go:902
main.main
        helm.sh/helm/v3/cmd/helm/helm.go:83
runtime.main
        runtime/proc.go:255
runtime.goexit
        runtime/asm_amd64.s:1581

PS C:\Users\<user>\Documents\CDI\jupyter> kubectl get events --sort-by='{.lastTimestamp}'
3m16s       Warning   FailedCreate   job/hook-image-awaiter
Error creating: pods "hook-image-awaiter-" is forbidden: unable to validate against any security context constraint: [
 provider "anyuid": Forbidden: not usable by user or serviceaccount,
 spec.containers[0].securityContext.runAsUser: Invalid value: 65534: must be in the ranges: [1000690000, 1000699999],
 provider "nonroot": Forbidden: not usable by user or serviceaccount,
 provider "hostmount-anyuid": Forbidden: not usable by user or serviceaccount,
 provider "machine-api-termination-handler": Forbidden: not usable by user or serviceaccount,
 provider "hostnetwork": Forbidden: not usable by user or serviceaccount,
 provider "hostaccess": Forbidden: not usable by user or serviceaccount,
 provider "node-exporter": Forbidden: not usable by user or serviceaccount,
 provider "privileged": Forbidden: not usable by user or serviceaccount]
2m58s       Warning   FailedCreate   daemonset/hook-image-puller
Error creating: pods "hook-image-puller-" is forbidden: unable to validate against any security context constraint: [
 provider "anyuid": Forbidden: not usable by user or serviceaccount,
 spec.initContainers[0].securityContext.runAsUser: Invalid value: 65534: must be in the ranges: [1000690000, 1000699999],
 spec.initContainers[1].securityContext.runAsUser: Invalid value: 65534: must be in the ranges: [1000690000, 1000699999],
 spec.containers[0].securityContext.runAsUser: Invalid value: 65534: must be in the ranges: [1000690000, 1000699999],
 provider "nonroot": Forbidden: not usable by user or serviceaccount,
 provider "hostmount-anyuid": Forbidden: not usable by user or serviceaccount,
 provider "machine-api-termination-handler": Forbidden: not usable by user or serviceaccount,
 provider "hostnetwork": Forbidden: not usable by user or serviceaccount,
 provider "hostaccess": Forbidden: not usable by user or serviceaccount,
 provider "node-exporter": Forbidden: not usable by user or serviceaccount,
 provider "privileged": Forbidden: not usable by user or serviceaccount]

The user is still 65534.
I tried the same with runAsUser: 1000690042. Same result: timeout due to security context constraint error.

2

HowTo solve “unable to validate against any security context constraint”

The list of providers in the error message are the default security context constraints. For details see: Red Hat OpenShift Docu.

My understanding of the error:

  • Kubernetes is trying out all the default security context constraints (SCCs). None of them work, alas the error.
  • we do not want to run JupyterHub with admin rights
  • restricted “Requires that a pod is run as a user in a pre-allocated range of UIDs”
  • for my OKD, that pre-allocated range changes with the creation of new pods

What I did

  1. add the JupyterHub helm chart repo (just like the guide)
helm repo add jupyterhub https://jupyterhub.github.io/helm-chart/
  1. pipe the yaml into local file
 helm show values jupyterhub/jupyterhub > ./jupyterhub.yaml
  1. I changed all occurances of 65534 to be in the range the error states:
    from this:
    containerSecurityContext:
      runAsUser: 65534 # nobody user
      runAsGroup: 65534 # nobody group

to this:

    containerSecurityContext:
      runAsUser: 1000830001 # nobody user
      runAsGroup: 1000830001 # nobody group

that lead to the following error: (only the hub had the error now)

image1585×224 39.1 KB

So I modified the following in the same way (except not picking the same int):

  containerSecurityContext:
    runAsUser: 1000 -> 1000830000
    runAsGroup: 1000 -> 1000830000
  1. use the modified .yaml for installation
helm install jupyterhub jupyterhub/jupyterhub --values .\jupyterhub.yaml --namespace blue --create-namespace
  1. apply changes like this:
helm upgrade jupyterhub jupyterhub/jupyterhub --values .\jupyterhub.yaml --namespace blue

Conclusion

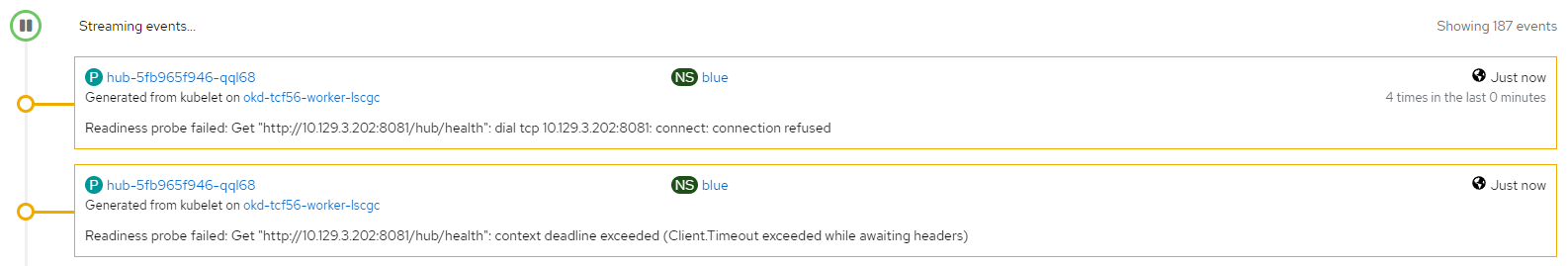

I understand a bit more about SCCs. But now I’m getting this error:

image1586×269 34.6 KB

3

The entire config file I am using atm:

Click to expand
# fullnameOverride and nameOverride distinguishes blank strings, null values,
# and non-blank strings. For more details, see the configuration reference.
fullnameOverride: ""
nameOverride:

# custom can contain anything you want to pass to the hub pod, as all passed
# Helm template values will be made available there.
custom: {}

# imagePullSecret is configuration to create a k8s Secret that Helm chart's pods
# can get credentials from to pull their images.
imagePullSecret:
  create: false
  automaticReferenceInjection: true
  registry:
  username:
  password:
  email:
# imagePullSecrets is configuration to reference the k8s Secret resources the
# Helm chart's pods can get credentials from to pull their images.
imagePullSecrets: []

# hub relates to the hub pod, responsible for running JupyterHub, its configured
# Authenticator class KubeSpawner, and its configured Proxy class
# ConfigurableHTTPProxy. KubeSpawner creates the user pods, and
# ConfigurableHTTPProxy speaks with the actual ConfigurableHTTPProxy server in
# the proxy pod.
hub:
  config:
    JupyterHub:
      admin_access: true
      authenticator_class: dummy
  service:
    type: ClusterIP
    annotations: {}
    ports:
      nodePort:
    extraPorts: []
    loadBalancerIP:
  baseUrl: /
  cookieSecret:
  initContainers: []
  fsGid: null
  nodeSelector: {}
  tolerations: []
  concurrentSpawnLimit: 64
  consecutiveFailureLimit: 5
  activeServerLimit:
  deploymentStrategy:
    ## type: Recreate
    ## - sqlite-pvc backed hubs require the Recreate deployment strategy as a
    ##   typical PVC storage can only be bound to one pod at the time.
    ## - JupyterHub isn't designed to support being run in parallell. More work
    ##   needs to be done in JupyterHub itself for a fully highly available (HA)
    ##   deployment of JupyterHub on k8s is to be possible.
    type: Recreate
  db:
    type: sqlite-pvc
    upgrade:
    pvc:
      annotations: {}
      selector: {}
      accessModes:
        - ReadWriteOnce
      storage: 1Gi
      subPath:
      storageClassName:
    url:
    password:
  labels: {}
  annotations: {}
  command: []
  args: []
  extraConfig: {}
  extraFiles: {}
  extraEnv: {}
  extraContainers: []
  extraVolumes: []
  extraVolumeMounts: []
  image:
    name: jupyterhub/k8s-hub
    tag: "1.2.0"
    pullPolicy:
    pullSecrets: []
  resources: {}
  containerSecurityContext:
    runAsUser: 1000830000
    runAsGroup: 1000830000
    allowPrivilegeEscalation: false
  lifecycle: {}
  services: {}
  pdb:
    enabled: false
    maxUnavailable:
    minAvailable: 1
  networkPolicy:
    enabled: true
    ingress: []
    ## egress for JupyterHub already includes Kubernetes internal DNS and
    ## access to the proxy, but can be restricted further, but ensure to allow
    ## access to the Kubernetes API server that couldn't be pinned ahead of
    ## time.
    ##
    ## ref: https://stackoverflow.com/a/59016417/2220152
    egress:
      - to:
          - ipBlock:
              cidr: 0.0.0.0/0
    interNamespaceAccessLabels: ignore
    allowedIngressPorts: []
  allowNamedServers: false
  namedServerLimitPerUser:
  authenticatePrometheus:
  redirectToServer:
  shutdownOnLogout:
  templatePaths: []
  templateVars: {}
  livenessProbe:
    # The livenessProbe's aim to give JupyterHub sufficient time to startup but
    # be able to restart if it becomes unresponsive for ~5 min.
    enabled: true
    initialDelaySeconds: 300
    periodSeconds: 10
    failureThreshold: 30
    timeoutSeconds: 3
  readinessProbe:
    # The readinessProbe's aim is to provide a successful startup indication,
    # but following that never become unready before its livenessProbe fail and
    # restarts it if needed. To become unready following startup serves no
    # purpose as there are no other pod to fallback to in our non-HA deployment.
    enabled: true
    initialDelaySeconds: 0
    periodSeconds: 2
    failureThreshold: 1000
    timeoutSeconds: 1
  existingSecret:
  serviceAccount:
    annotations: {}
  extraPodSpec: {}

rbac:
  enabled: true

# proxy relates to the proxy pod, the proxy-public service, and the autohttps
# pod and proxy-http service.
proxy:
  secretToken:
  annotations: {}
  deploymentStrategy:
    ## type: Recreate
    ## - JupyterHub's interaction with the CHP proxy becomes a lot more robust
    ##   with this configuration. To understand this, consider that JupyterHub
    ##   during startup will interact a lot with the k8s service to reach a
    ##   ready proxy pod. If the hub pod during a helm upgrade is restarting
    ##   directly while the proxy pod is making a rolling upgrade, the hub pod
    ##   could end up running a sequence of interactions with the old proxy pod
    ##   and finishing up the sequence of interactions with the new proxy pod.
    ##   As CHP proxy pods carry individual state this is very error prone. One
    ##   outcome when not using Recreate as a strategy has been that user pods
    ##   have been deleted by the hub pod because it considered them unreachable
    ##   as it only configured the old proxy pod but not the new before trying
    ##   to reach them.
    type: Recreate
    ## rollingUpdate:
    ## - WARNING:
    ##   This is required to be set explicitly blank! Without it being
    ##   explicitly blank, k8s will let eventual old values under rollingUpdate
    ##   remain and then the Deployment becomes invalid and a helm upgrade would
    ##   fail with an error like this:
    ##
    ##     UPGRADE FAILED
    ##     Error: Deployment.apps "proxy" is invalid: spec.strategy.rollingUpdate: Forbidden: may not be specified when strategy `type` is 'Recreate'
    ##     Error: UPGRADE FAILED: Deployment.apps "proxy" is invalid: spec.strategy.rollingUpdate: Forbidden: may not be specified when strategy `type` is 'Recreate'
    rollingUpdate:
  # service relates to the proxy-public service
  service:
    type: LoadBalancer
    labels: {}
    annotations: {}
    nodePorts:
      http:
      https:
    disableHttpPort: false
    extraPorts: []
    loadBalancerIP:
    loadBalancerSourceRanges: []
  # chp relates to the proxy pod, which is responsible for routing traffic based
  # on dynamic configuration sent from JupyterHub to CHP's REST API.
  chp:
    containerSecurityContext:
      runAsUser: 1000830001 # nobody user
      runAsGroup: 1000830001 # nobody group
      allowPrivilegeEscalation: false
    image:
      name: jupyterhub/configurable-http-proxy
      tag: 4.5.0 # https://github.com/jupyterhub/configurable-http-proxy/releases
      pullPolicy:
      pullSecrets: []
    extraCommandLineFlags: []
    livenessProbe:
      enabled: true
      initialDelaySeconds: 60
      periodSeconds: 10
    readinessProbe:
      enabled: true
      initialDelaySeconds: 0
      periodSeconds: 2
      failureThreshold: 1000
    resources: {}
    defaultTarget:
    errorTarget:
    extraEnv: {}
    nodeSelector: {}
    tolerations: []
    networkPolicy:
      enabled: true
      ingress: []
      egress:
        - to:
            - ipBlock:
                cidr: 0.0.0.0/0
      interNamespaceAccessLabels: ignore
      allowedIngressPorts: [http, https]
    pdb:
      enabled: false
      maxUnavailable:
      minAvailable: 1
    extraPodSpec: {}
  # traefik relates to the autohttps pod, which is responsible for TLS
  # termination when proxy.https.type=letsencrypt.
  traefik:
    containerSecurityContext:
      runAsUser: 1000830001 # nobody user
      runAsGroup: 1000830001 # nobody group
      allowPrivilegeEscalation: false
    image:
      name: traefik
      tag: v2.4.11 # ref: https://hub.docker.com/_/traefik?tab=tags
      pullPolicy:
      pullSecrets: []
    hsts:
      includeSubdomains: false
      preload: false
      maxAge: 15724800 # About 6 months
    resources: {}
    labels: {}
    extraEnv: {}
    extraVolumes: []
    extraVolumeMounts: []
    extraStaticConfig: {}
    extraDynamicConfig: {}
    nodeSelector: {}
    tolerations: []
    extraPorts: []
    networkPolicy:
      enabled: true
      ingress: []
      egress:
        - to:
            - ipBlock:
                cidr: 0.0.0.0/0
      interNamespaceAccessLabels: ignore
      allowedIngressPorts: [http, https]
    pdb:
      enabled: false
      maxUnavailable:
      minAvailable: 1
    serviceAccount:
      annotations: {}
    extraPodSpec: {}
  secretSync:
    containerSecurityContext:
      runAsUser: 1000830001 # nobody user
      runAsGroup: 1000830001 # nobody group
      allowPrivilegeEscalation: false
    image:
      name: jupyterhub/k8s-secret-sync
      tag: "1.2.0"
      pullPolicy:
      pullSecrets: []
    resources: {}
  labels: {}
  https:
    enabled: false
    type: letsencrypt
    #type: letsencrypt, manual, offload, secret
    letsencrypt:
      contactEmail:
      # Specify custom server here (https://acme-staging-v02.api.letsencrypt.org/directory) to hit staging LE
      acmeServer: https://acme-v02.api.letsencrypt.org/directory
    manual:
      key:
      cert:
    secret:
      name:
      key: tls.key
      crt: tls.crt
    hosts: []

# singleuser relates to the configuration of KubeSpawner which runs in the hub
# pod, and its spawning of user pods such as jupyter-myusername.
singleuser:
  podNameTemplate:
  extraTolerations: []
  nodeSelector: {}
  extraNodeAffinity:
    required: []
    preferred: []
  extraPodAffinity:
    required: []
    preferred: []
  extraPodAntiAffinity:
    required: []
    preferred: []
  networkTools:
    image:
      name: jupyterhub/k8s-network-tools
      tag: "1.2.0"
      pullPolicy:
      pullSecrets: []
  cloudMetadata:
    # block set to true will append a privileged initContainer using the
    # iptables to block the sensitive metadata server at the provided ip.
    blockWithIptables: true
    ip: 169.254.169.254
  networkPolicy:
    enabled: true
    ingress: []
    egress:
      # Required egress to communicate with the hub and DNS servers will be
      # augmented to these egress rules.
      #
      # This default rule explicitly allows all outbound traffic from singleuser
      # pods, except to a typical IP used to return metadata that can be used by
      # someone with malicious intent.
      - to:
          - ipBlock:
              cidr: 0.0.0.0/0
              except:
                - 169.254.169.254/32
    interNamespaceAccessLabels: ignore
    allowedIngressPorts: []
  events: true
  extraAnnotations: {}
  extraLabels:
    hub.jupyter.org/network-access-hub: "true"
  extraFiles: {}
  extraEnv: {}
  lifecycleHooks: {}
  initContainers: []
  extraContainers: []
  uid: 1000
  fsGid: 100
  serviceAccountName:
  storage:
    type: dynamic
    extraLabels: {}
    extraVolumes: []
    extraVolumeMounts: []
    static:
      pvcName:
      subPath: "{username}"
    capacity: 10Gi
    homeMountPath: /home/jovyan
    dynamic:
      storageClass:
      pvcNameTemplate: claim-{username}{servername}
      volumeNameTemplate: volume-{username}{servername}
      storageAccessModes: [ReadWriteOnce]
  image:
    name: jupyterhub/k8s-singleuser-sample
    tag: "1.2.0"
    pullPolicy:
    pullSecrets: []
  startTimeout: 300
  cpu:
    limit:
    guarantee:
  memory:
    limit:
    guarantee: 1G
  extraResource:
    limits: {}
    guarantees: {}
  cmd: jupyterhub-singleuser
  defaultUrl:
  extraPodConfig: {}
  profileList: []

# scheduling relates to the user-scheduler pods and user-placeholder pods.
scheduling:
  userScheduler:
    enabled: true
    replicas: 2
    logLevel: 4
    # plugins ref: https://kubernetes.io/docs/reference/scheduling/config/#scheduling-plugins-1
    plugins:
      score:
        disabled:
          - name: SelectorSpread
          - name: TaintToleration
          - name: PodTopologySpread
          - name: NodeResourcesBalancedAllocation
          - name: NodeResourcesLeastAllocated
          # Disable plugins to be allowed to enable them again with a different
          # weight and avoid an error.
          - name: NodePreferAvoidPods
          - name: NodeAffinity
          - name: InterPodAffinity
          - name: ImageLocality
        enabled:
          - name: NodePreferAvoidPods
            weight: 161051
          - name: NodeAffinity
            weight: 14631
          - name: InterPodAffinity
            weight: 1331
          - name: NodeResourcesMostAllocated
            weight: 121
          - name: ImageLocality
            weight: 11
    containerSecurityContext:
      runAsUser: 1000830001 # nobody user
      runAsGroup: 1000830001 # nobody group
      allowPrivilegeEscalation: false
    image:
      # IMPORTANT: Bumping the minor version of this binary should go hand in
      #            hand with an inspection of the user-scheduelrs RBAC resources
      #            that we have forked.
      name: k8s.gcr.io/kube-scheduler
      tag: v1.19.13 # ref: https://github.com/kubernetes/website/blob/7c09c7b4be4b33ef573a2268b6adb94d6fa6615b/content/en/releases/patch-releases.md
      pullPolicy:
      pullSecrets: []
    nodeSelector: {}
    tolerations: []
    pdb:
      enabled: true
      maxUnavailable: 1
      minAvailable:
    resources: {}
    serviceAccount:
      annotations: {}
    extraPodSpec: {}
  podPriority:
    enabled: false
    globalDefault: false
    defaultPriority: 0
    userPlaceholderPriority: -10
  userPlaceholder:
    enabled: true
    image:
      name: k8s.gcr.io/pause
      # tag's can be updated by inspecting the output of the command:
      # gcloud container images list-tags k8s.gcr.io/pause --sort-by=~tags
      #
      # If you update this, also update prePuller.pause.image.tag
      tag: "3.5"
      pullPolicy:
      pullSecrets: []
    replicas: 0
    containerSecurityContext:
      runAsUser: 1000830001 # nobody user
      runAsGroup: 1000830001 # nobody group
      allowPrivilegeEscalation: false
    resources: {}
  corePods:
    tolerations:
      - key: hub.jupyter.org/dedicated
        operator: Equal
        value: core
        effect: NoSchedule
      - key: hub.jupyter.org_dedicated
        operator: Equal
        value: core
        effect: NoSchedule
    nodeAffinity:
      matchNodePurpose: prefer
  userPods:
    tolerations:
      - key: hub.jupyter.org/dedicated
        operator: Equal
        value: user
        effect: NoSchedule
      - key: hub.jupyter.org_dedicated
        operator: Equal
        value: user
        effect: NoSchedule
    nodeAffinity:
      matchNodePurpose: prefer

# prePuller relates to the hook|continuous-image-puller DaemonsSets
prePuller:
  annotations: {}
  resources: {}
  containerSecurityContext:
    runAsUser: 1000830001 # nobody user
    runAsGroup: 1000830001 # nobody group
    allowPrivilegeEscalation: false
  extraTolerations: []
  # hook relates to the hook-image-awaiter Job and hook-image-puller DaemonSet
  hook:
    enabled: true
    pullOnlyOnChanges: true
    # image and the configuration below relates to the hook-image-awaiter Job
    image:
      name: jupyterhub/k8s-image-awaiter
      tag: "1.2.0"
      pullPolicy:
      pullSecrets: []
    containerSecurityContext:
      runAsUser: 1000830001 # nobody user
      runAsGroup: 1000830001 # nobody group
      allowPrivilegeEscalation: false
    podSchedulingWaitDuration: 10
    nodeSelector: {}
    tolerations: []
    resources: {}
    serviceAccount:
      annotations: {}
  continuous:
    enabled: true
  pullProfileListImages: true
  extraImages: {}
  pause:
    containerSecurityContext:
      runAsUser: 1000830001 # nobody user
      runAsGroup: 1000830001 # nobody group
      allowPrivilegeEscalation: false
    image:
      name: k8s.gcr.io/pause
      # tag's can be updated by inspecting the output of the command:
      # gcloud container images list-tags k8s.gcr.io/pause --sort-by=~tags
      #
      # If you update this, also update scheduling.userPlaceholder.image.tag
      tag: "3.5"
      pullPolicy:
      pullSecrets: []

ingress:
  enabled: false
  annotations: {}
  hosts: []
  pathSuffix:
  pathType: Prefix
  tls: []

# cull relates to the jupyterhub-idle-culler service, responsible for evicting
# inactive singleuser pods.
#
# The configuration below, except for enabled, corresponds to command-line flags
# for jupyterhub-idle-culler as documented here:
# https://github.com/jupyterhub/jupyterhub-idle-culler#as-a-standalone-script
#
cull:
  enabled: true
  users: false # --cull-users
  removeNamedServers: false # --remove-named-servers
  timeout: 3600 # --timeout
  every: 600 # --cull-every
  concurrency: 10 # --concurrency
  maxAge: 0 # --max-age

debug:
  enabled: false

global:
  safeToShowValues: false
4

Z2JH has two main default settings that may require elevated privileges:

5

Update on the state of JupyterHub on OKD:

I was able to get a pod up and running.
WARNING: manually bashing into the pod and editing it is not what you want to do.
But I wanted to share my progress, in case it helps someone.

Steps to reproduce:

  • generate the pod with the podman generated .yaml
Click to expand
michael@debian:~/Documents$ podman --runtime /usr/bin/crun generate kube ugh
# Generation of Kubernetes YAML is still under development!
#
# Save the output of this file and use kubectl create -f to import
# it into Kubernetes.
#
# Created with podman-3.0.1
apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: "2022-05-30T14:25:54Z"
  labels:
    app: teri
  name: teri
spec:
  containers:
  - command:
    - jupyterhub
    env:
    - name: PATH
      value: /usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin
    - name: TERM
      value: xterm
    - name: container
      value: podman
    - name: DEBIAN_FRONTEND
      value: noninteractive
    - name: SHELL
      value: /bin/bash
    - name: LC_ALL
      value: en_US.UTF-8
    - name: LANG
      value: en_US.UTF-8
    - name: LANGUAGE
      value: en_US.UTF-8
    image: docker.io/jupyterhub/jupyterhub
    name: teri
    ports:
    - containerPort: 8000
      hostPort: 8500
      protocol: TCP
    resources: {}
    securityContext:
      allowPrivilegeEscalation: true
      capabilities:
        drop:
        - CAP_MKNOD
        - CAP_NET_RAW
        - CAP_AUDIT_WRITE
      privileged: false
      readOnlyRootFilesystem: false
      runAsGroup: 0
      runAsUser: 0
      seLinuxOptions: {}
    workingDir: /srv/jupyterhub/
  dnsConfig: {}
status: {}
  • create a service for your pod like this
apiVersion: v1
kind: Service
metadata:
  name: teri-service
spec:
  selector:
    app: teri
  ports:
    - protocol: TCP
      port: 80
      targetPort: 8000

  • run this command: oc expose service teri-service

  • Now you have a JupyterHub running, but it cannot spawn a Notebook

  • So I followed this guide here

Click to expand copy of the guide

update the repositories

apt update

install python3 and related packages

apt-get install npm nodejs python3 python3-pip git nano

install jupyterhub and jupyterlab

python3 -m pip install jupyterhub notebook jupyterlab

install nodejs packages

npm install -g configurable-http-proxy

install native authenticator package

cd /home

git clone GitHub - jupyterhub/nativeauthenticator: JupyterHub-native User Authenticator https://native-authenticator.readthedocs.io/en/latest/

cd nativeauthenticator

pip3 install -e .

modify jupyterconfig

mkdir /etc/jupyterhub

cd /etc/jupyterhub

jupyterhub --generate-config -f jupyterhub_config.py

edit the jupyterhub config file

nano jupyterhub_config.py

import pwd, subprocess
c.JupyterHub.authenticator_class = 'nativeauthenticator.NativeAuthenticator'
c.Authenticator.admin_users = {'admin'}
def pre_spawn_hook(spawner):
    username = spawner.user.name
    try:
        pwd.getpwnam(username)
    except KeyError:
        subprocess.check_call(['useradd', '-ms', '/bin/bash', username])
c.Spawner.pre_spawn_hook = pre_spawn_hook
c.Spawner.default_url = '/lab'
  • Create a new user by entering your container with kubectl exec -ti teri -- bash
    • and running adduser <USERNAME HERE>
  • login and use the notebook
6

Final Update (just in case someone stumbles upon this issue):

I gave up on deploying JupyterHub on OKD and I would not recommend anyone to try.
Naively, I thought I could use Graham Dumpletons work. But that did not lead to anything productive.

7

Another option is to create some Security Context Constraints, e.g.,

oc adm policy add-scc-to-user anyuid -z hook-image-awaiter -n <ns>
oc adm policy add-scc-to-user anyuid -z hub -n <ns>
oc adm policy add-scc-to-user anyuid -z user-scheduler -n <ns>
oc adm policy add-scc-to-user anyuid -z default -n <ns>
oc adm policy add-scc-to-user privileged -z default -n <ns>
