Connection is not secure with automatic HTTPS

JupyterHub
1

I am deploying my JupyterHub, using the distribution zero-to-jupyterhub, on Google Cloud Platform with Kubernetes. I want to set up automatic HTTPS from letsencrypt with the configuration setting described in the config.yaml file. However, even though it was successfully deployed using Helm, I am not able to establish a secure connection when accessing the site.

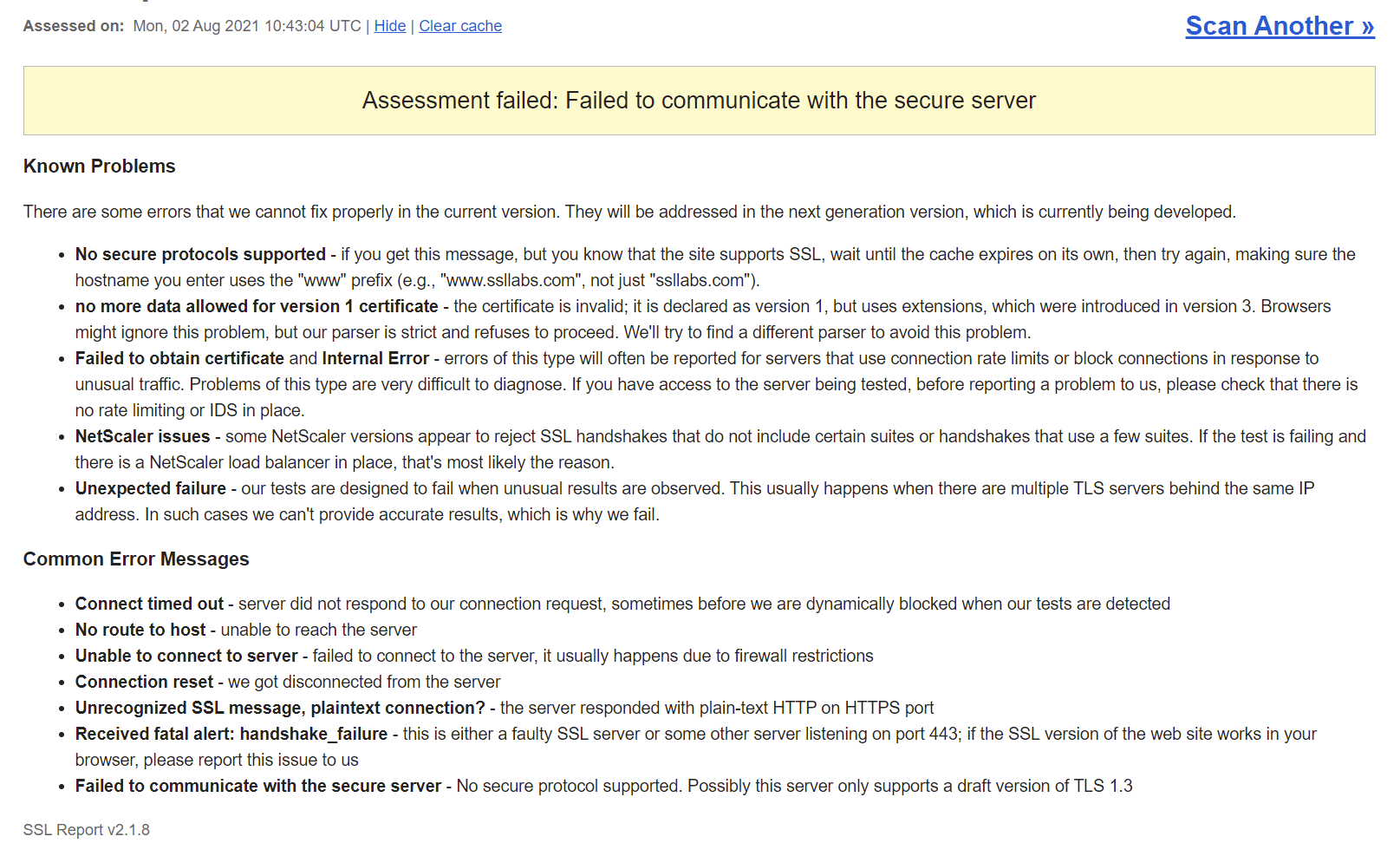

It seems to me that letsencrypt is not able to provide a certificate after scanning the site with ssllabs.
Please advise on what can be done to debug. Thank you in advance.

image1615×972 160 KB

#config.yaml
proxy:
  secretToken: "redacted"
  https:
    enabled: true
    hosts:
    - redacted.com
    letsencrypt:
      contactEmail: redacted@email.com
  service:
    loadBalancerIP: redacted
2

Hi! What version of Z2JH are you using? Is your external IP and hostname open to everyone, or have you made any customisations to your cluster such as limiting access with a firewall?

Assuming you’re using the latest version of Z2JH you should be able to get some logs from the autohttps/traefik pod, if that doesn’t help please share the logs here.

3

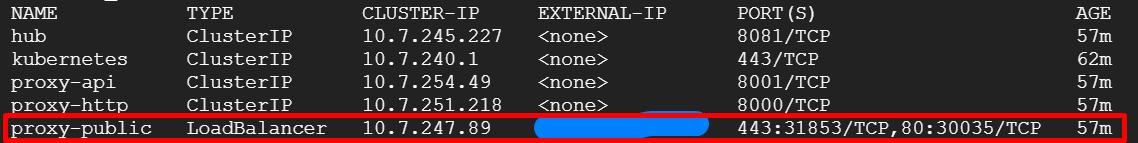

I redacted my external ip-address in blue. The ports 80 and 443 seem to be open and yes, my external IP and hostname are accessible to the public.

image1138×143 7.4 KB

The log is as followed.

time="2021-08-03T01:13:48Z" level=info msg="Configuration loaded from file: /etc/traefik/traefik.toml"
time="2021-08-03T01:13:48Z" level=info msg="Traefik version 2.1.9 built on 2020-03-23T17:23:17Z"
time="2021-08-03T01:13:48Z" level=info msg="\nStats collection is disabled.\nHelp us improve Traefik by turning this feature on :)\nMore details on: https://docs.traefik.io/contributing/data-collection/\n"
time="2021-08-03T01:13:48Z" level=info msg="Starting provider aggregator.ProviderAggregator {}"
time="2021-08-03T01:13:48Z" level=info msg="Starting provider *file.Provider {\"watch\":true,\"filename\":\"/etc/traefik/dynamic.toml\"}"
time="2021-08-03T01:13:48Z" level=info msg="Starting provider *traefik.Provider {}"
time="2021-08-03T01:13:48Z" level=info msg="Starting provider *acme.Provider {\"email\":\"redacted@email.com\",\"caServer\":\"https://acme-v02.api.letsencrypt.org/directory\",\"storage\":\"/etc/acme/acme.json\",\"keyType\":\"RSA4096\",\"httpChallenge\":{\"entryPoint\":\"http\"},\"ResolverName\":\"le\",\"store\":{},\"ChallengeStore\":{}}"
time="2021-08-03T01:13:48Z" level=info msg="Testing certificate renew..." providerName=le.acme
time="2021-08-03T01:13:49Z" level=info msg=Register... providerName=le.acme
time="2021-08-03T01:14:02Z" level=error msg="Unable to obtain ACME certificate for domains \"redacted.com\" : unable to generate a certificate for the domains [redacted.com]: acme: Error -> One or more domains had a problem:\n[redacted.com] acme: error: 400 :: urn:ietf:params:acme:error:connection :: Fetching http://redacted.com/.well-known/acme-challenge/tDlj6vsCY5R9yx8nmr7aAJxbA5MDO6nbR9Q5peyrGKA: Timeout during connect (likely firewall problem), url: \n" providerName=le.acme
time="2021-08-03T01:14:02Z" level=error msg="Unable to obtain ACME certificate for domains \"redacted.com\" : unable to generate a certificate for the domains [redacted.com]: acme: Error -> One or more domains had a problem:\n[redacted.com] acme: error: 400 :: urn:ietf:params:acme:error:connection :: Fetching http://redacted.com/.well-known/acme-challenge/xdy_nJVBSOTSHKcTHbL1mXpb7lX2dg2xazRKEUfbOjA: Timeout during connect (likely firewall problem), url: \n" providerName=le.acme

Please let me know if anything could be done, I really appreciate any help.

4

To whoever with this problem, please refer to this posting Trouble getting HTTPS / letsencrypt working with 0.9.0-beta.4 - #10 by matthew.brett

Run this command a few times (I did twice) to fix this:

kubectl delete pods $(kubectl get pods -o custom-columns=POD:metadata.name | grep autohttps-)

I have no idea how why though but it works.

1 Like
